The Leicozic UA90-A2021 UHF Wideband Antenna Splitter is designed to enhance signal reception for up to 8 wireless receivers, ensuring optimal performance over a wide frequency range. With features like adjustable RF signal levels and an overload indicator, it offers a reliable solution for wireless audio setups.

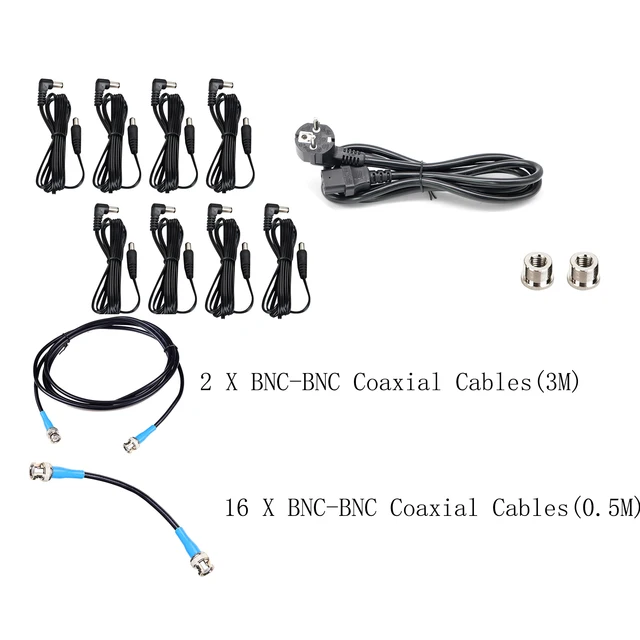

Leicozic UA90-A2021UHF WidebandAntenna Splitter 450-1000MHZRF Signal AntenaDirectional BNC-BNC CoaxialCables 16Grounps

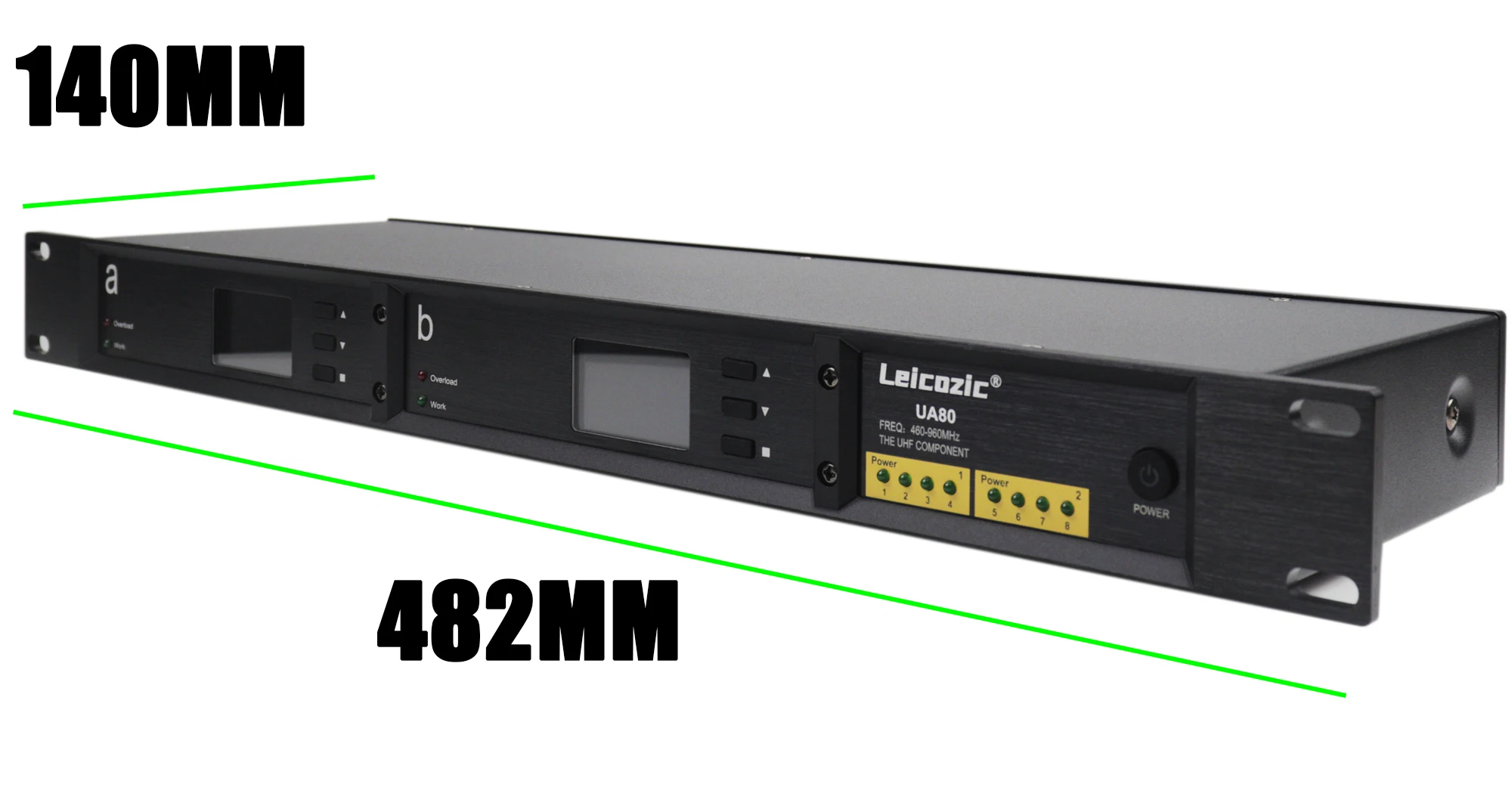

UA90-A2001 UHF Wideband 1 to 8Antenna Splitter 450-1000MHZ
Powerful distribution:

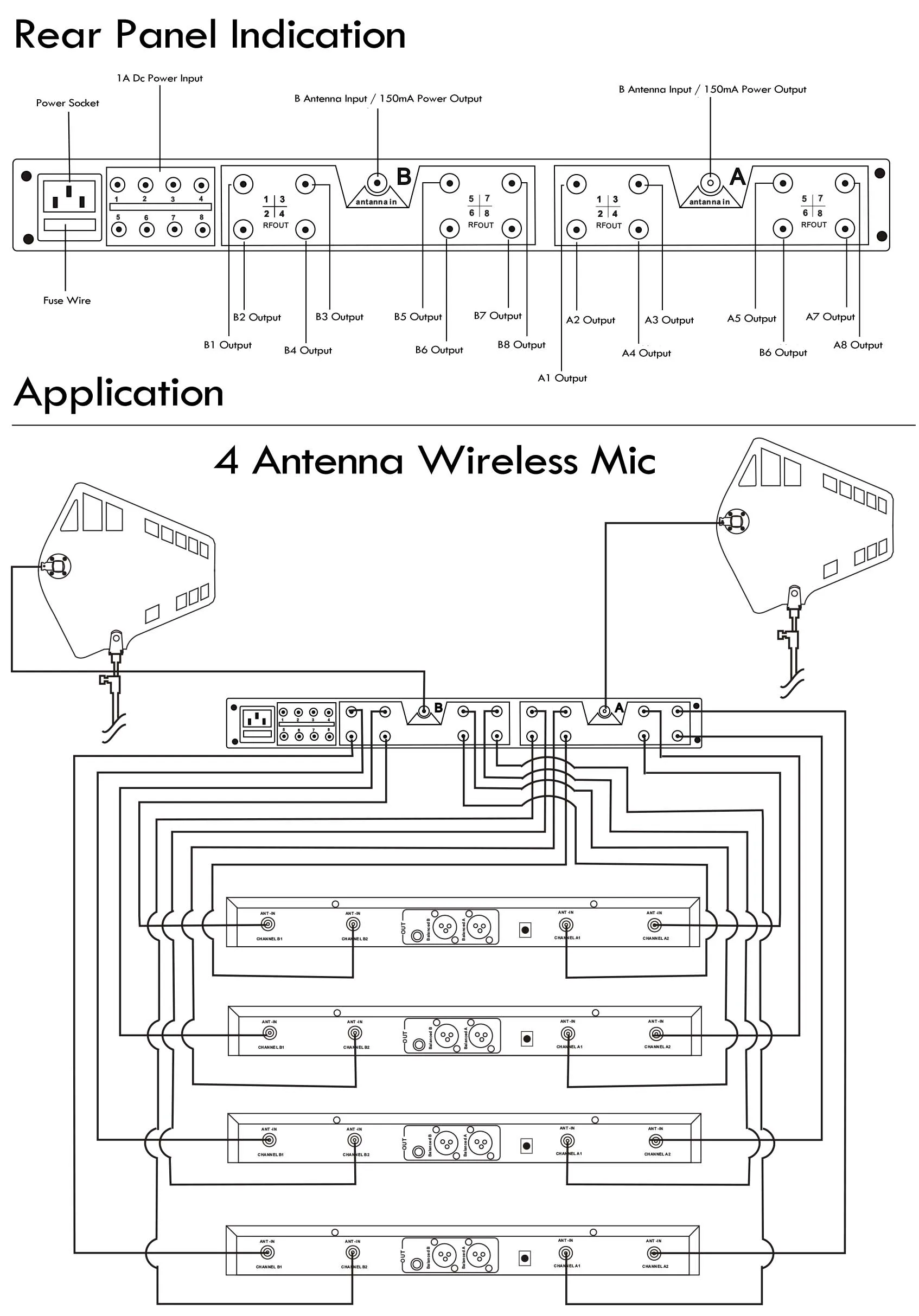

UA90 is an active wideband UHF antenna splitter, using a pair of RF signal antennas, can connect up to 8 wireless receivers, or use the cascade method to cascade up to 8 antenna splitters for 56 sets of wireless receivers , And power the active antenna through the BNC cable. Ultra-wide working frequency band 450-1000MHz. LCD high-definition display, 32-level RF level adjustment can most effectively ensure the best signal needs of the wireless receiver, ensuring that the maximum working distance can be achieved even if different lengths and different types of cables are used. RF signal overload indicator always monitors the quality of radio waves.
Main feature:
♦Ultra-wide working frequency
450-1000MHz to ensure the maximum flexibility of the system
♦ 32-level adjustable RF signal level for optimizing the receiving efficiency of different cables
♦Link output

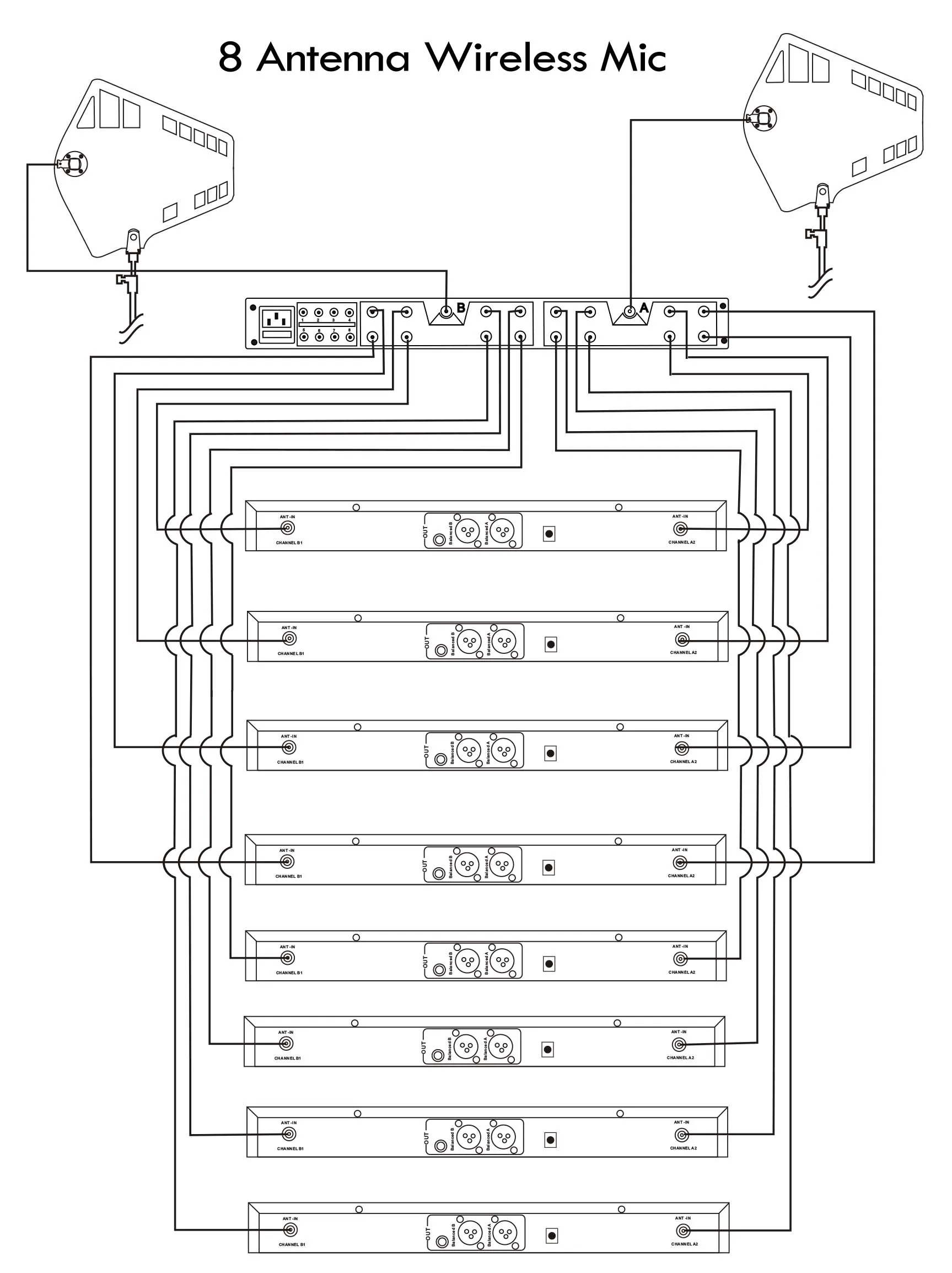

8 wireless receivers can be linked to form a large-scale system
♦ RF level overload LED
Timely monitor the quality of the RF signal

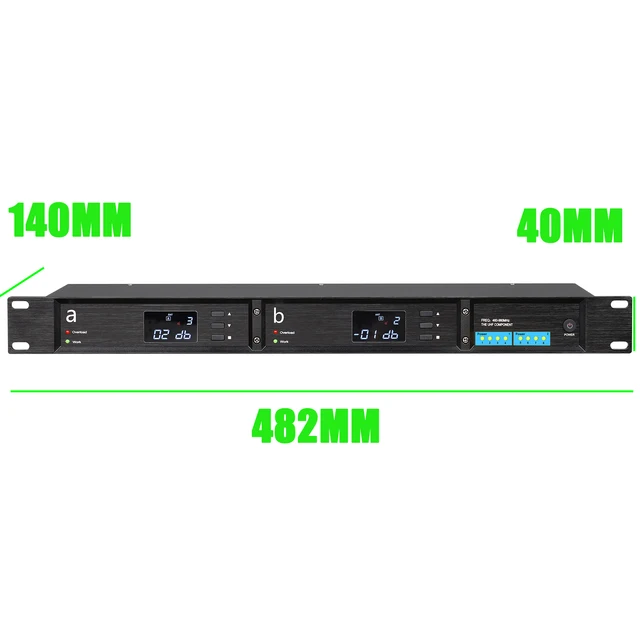

♦High-definition LCD display
HD LCD display
♦The machine code record is adjustable
Machine number record is adjustable
♦Panel lock function
Prevent misuse of the show
|
Gain amplifier technical index
|
|
|
|
|
|
■ Frequency: U section 450-1000MHz
|
|
■ Input/output impedance: 50 ohms
|
|

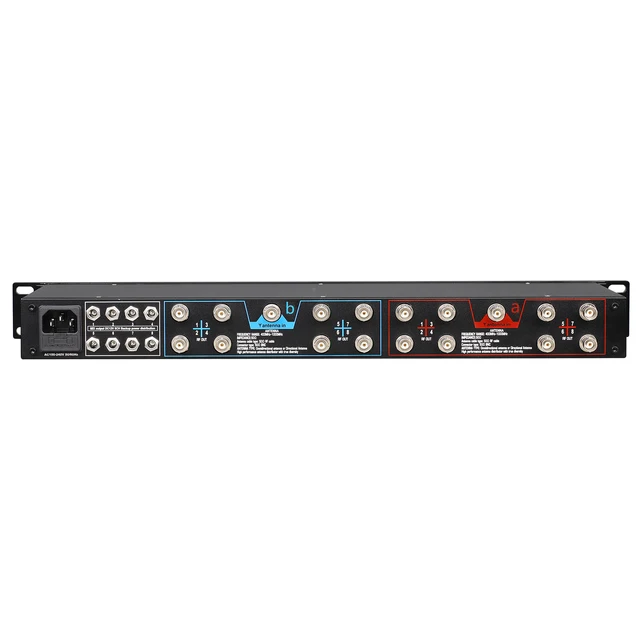

■ Interface: B-type female seat
|
|
■ Gain (32 levels adjustable): -24dB to +12dB in 1dB steps
|
|
■ 3rd order intermodulation intercept point : +38dBm (typical)
|
|
■ Gain flatness: +1dB, full frequency band
|
|
■ Power supply: AC100-260VAC/T2A 47-63 Hz
|
MODEL: A2021 Antenna
Suitable for outdoor or indoor long-distance wiring applications
Using specially designed antenna components, it can support up to 300 meters.
Main feature:

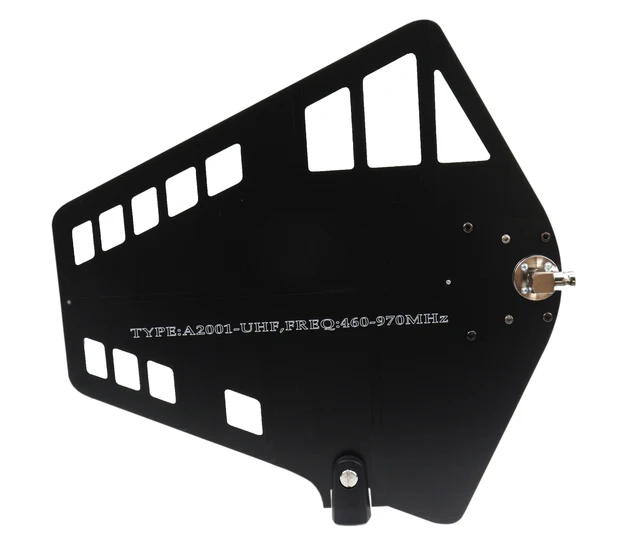

♦A2001 is a broadband U-segment LPDA antenna
♦Enhance signal reception by 12dB, radiation angle 90 degrees
♦Integrated CNC adjustable 12dB gain amplifier
♦HD parameter display

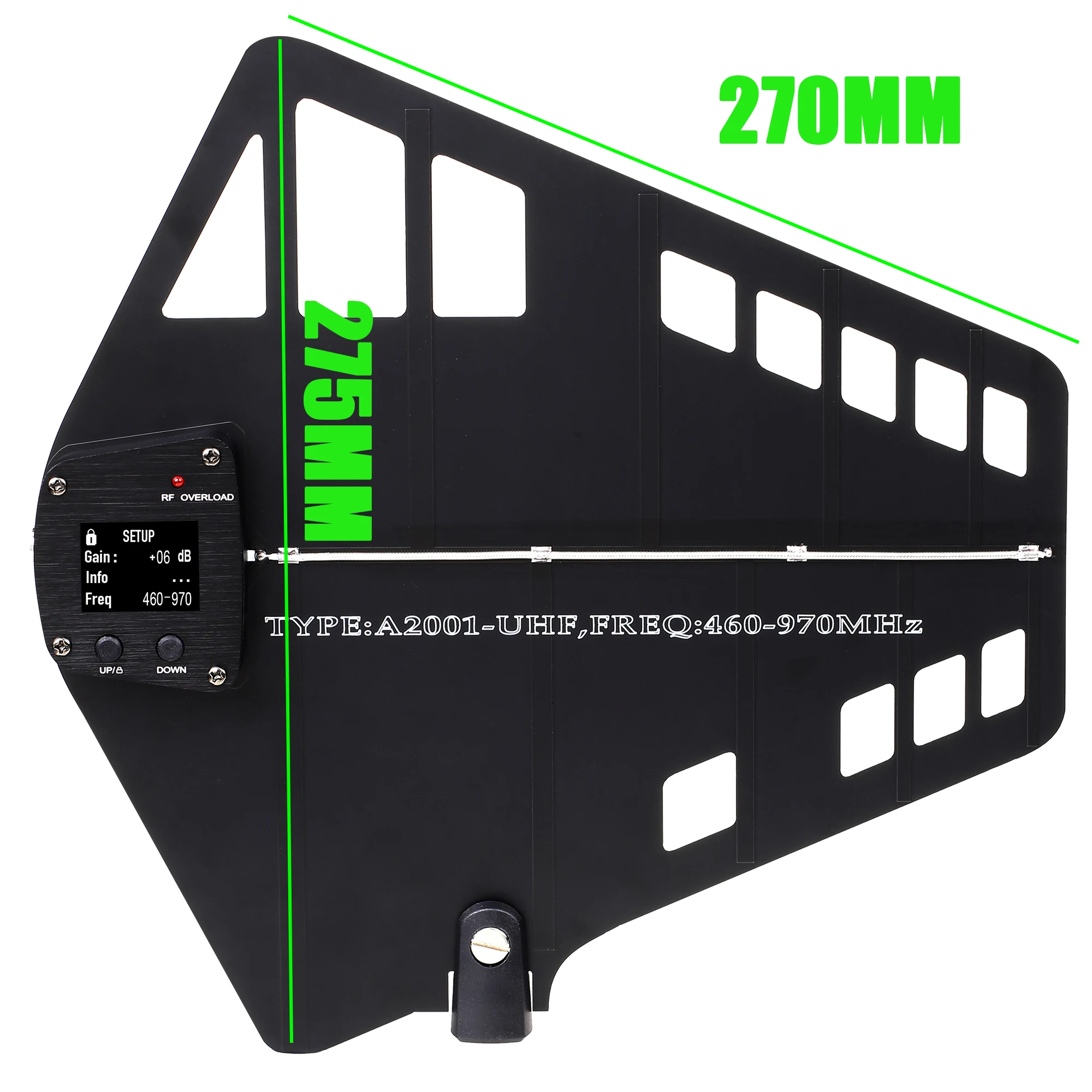

♦Antenna size: 274mmX275mmX40mm
♦Structure: epoxy glass fiber
♦Surface: black matte
Gain amplifier technical index:
♦Frequency: U section 460-970MHz
♦Input/output impedance: 50 ohms
(SWR<=1:1.5;Typical=1:1.4)
♦Interface: B-type female
♦Gain (maximum): -6 12dB (typical)
♦3rd order intermodulation intercept point: +45dBm (typical)
♦Gain flatness: +1dB, full frequency band
♦Power supply: +9Vto 12V (typical), 150mA
Features
A2021 is an active directional broadband receiving antenna suitable for wireless microphones, which can compensate for signal loss caused by too long cable.
Using specially designed antenna components, it can support up to 300 meters.
